Understructure:
Steel tubing, running the full deck length with six bolt down assemblies for installation onto truck or trailer.



Coring and Manipulator Assembly:
Dual stage mast deployment system accommodates a    variety of deck levels or trailer heights. Up to 24" diameter wet drilling core bit capacity with linear glide system and proportional orbital hydraulic drum feed system.



Side Shift Feature:

The side-shift positioning system allows the core drill to be shifted side-to-side 20-inches across the width of the MPX-SS Coring Unit. Hydraulically actuated.



Water system:
100 USG plastic water tank. Electric water pump, 3 G.P.M. @ 30 P.S.I. and includes 1/2” diameter water hose running to gland assembly on cutter drive shaft for cooling of
cutter head and auxiliary hose for cleaning and cooling outside of cutter.



Stabilizers:
Two rear mounted hydraulic stabilizers.



Hydraulic System:
26.5 H.P. gas engine creates over 18 GPM of hydraulic flow at 2200 PSI. Hydraulic gear pump, hydraulic cooling system complete with 15 gallon hydraulic reservoir.      Includes suction and return lines, sight glass, temperature gauge, fill port, drain port and oil filter, with proportionate hydraulic valves.



Control System:
Plug in remote pendant control with 15ft cable extension for operation of manipulator/cutter assembly and stabilizers, with boom mounted control panel, emergency shutdown switch and digital coring drum R.P.M. read out. Cold weather start up system. Dash mounted ignition key and throttle controlled from the rear of the unit.



Paint:

Sand blasted, powder coated primer and powder coated finish coat. (50% gloss black)



RearBumper (optional):Truck mount only                                                           Integrated wrap around checker plate bumper with licence plate mount and light.



Storage (optional): Trailer mount only

Two side-mounted locking storage boxes.

(36”W x 20”D x 10”H)



Core Hoist (optional):
500 lb capacity core hoist. (12V)



Winterizing System (optional):                                                                            Glycol wintering system for operation in colder climates.



High Pressure Wash System (optional):

Hydraulically driven high-pressure water pump, 5.5 G.P.M. @ 1500 P.S.I. with 15 ft of 3/8” hose and high-pressure handgun.



Basic Coring Package (extra):
12”, 18" or 24” diameter ProCor diamond segment coring drum with "A" flange drive adapter, steel pilot shaft, pilot bit, pavement protection impact plate, standard core-puller, and Utilibond mixing paddle.






 MPX-SS Coring Unit

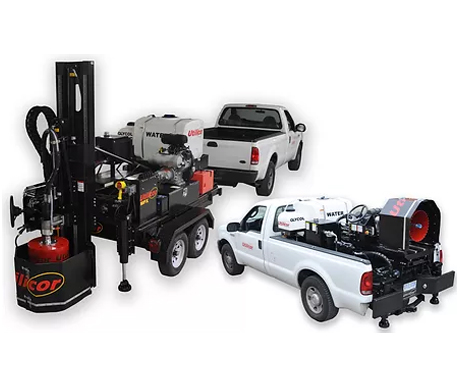

The MPX-SS – Multi Platform Coring Unit – is Utilicor’s most flexible coring equipment. As its name suggests, it easily mounts on a variety of platforms: pickup trucks, flat deck trucks, service bodies or trailers.

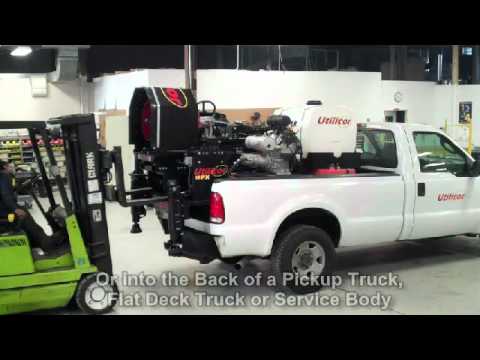

Built on a universal base that fits within the width of even the narrowest of pickup trucks, the MPX is a truly revolutionary design. A simple bolt-down pattern allows for a variety of installations, and can be easily swapped between vehicles, or even removed and stored off the truck or trailer when not required. The new, dual-stage mast deployment system accommodates a variety of deck or trailer heights.



The MPX-SS with Side Shift technology allows for positioning of the coring mast up to 20 inches side-to-side all without repositioning of the truck or trailer.





Brochure:

Recommended Vehicle Specifications:

  • Pick up truck or flat bed truck

  • GVRW 9900 lbs. or greater

  • 8 foot truck bed (min.)



Coring Unit Weight:

  • Weight (water tank empty): 3400 lbs.

  • Weight (water tank full): 4234 lbs.



Accommodates Deck Heights:

  • 26” up to 40” (specify deck height on order)



Dimensions:

  • Length:102”

  • Width: 65”



Capacities:

  • Water Tank: 100 Gallons

  • Drum Speed: 0 - 280 RPM

  • Coring Drum Diameter: up to 24”

  • Coring Drum Depth: up to 22”

  • Side Shift Capacity - 10” either side of center



Available Coring Unit Options:

  • Core Hoist (500 lbs. capacity)

  • Winterizing System

  • High pressure wash system

  • Stabilizer “deployed” warning system

  • Diesel Engine / Upgrade

  • Bumper for pick up truck

  • Storage boxes for trailer



Required Tow Vehicle

  • Trailer brake with adjustable gain

  • Trailer light hook up

  • 2” receiver or greater with 5000 lbs. capacity



Utilicor Trailer Specifications (Optional)

  •  Tandem axle trailer with 5500 lbs. capacity

  • Axles: 2 x 3500 lbs.

  • Axle type: spring with double eye overslung

  • Electric brakes (both axles)

  • Breakaway switch with battery kit· Adjustable Pintle

  • NATM certified

  • Connector: 7 pin commercial

  • Paint: black epoxy

  • Safety chains: 5/16” gold chains and hooks

  • Wiring: sealed harness

  • Weight: 1200 lbs.

  • Dimensions: 98”L x 72”W (trailer bed) Overall length: 149”
