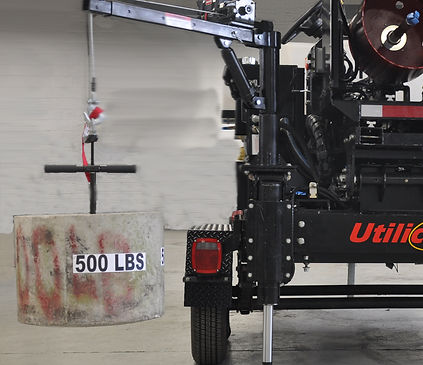

500-lb. Capacity Core Hoist for MD-300 or MPX



To avoid workplace injury of crews working with heavy or larger cores many purchasers also choose this optional Core Hoist.



This powerful, rear deck-mounted (12 V), core hoist is available as an option on the MD-200 or MPX to safely hoist and manipulate cores weighing up to 500-pounds.



A typical 18” diameter core, 8” deep, weighs about 170 lbs., and a core 12” deep, more than 250 pounds, making the core hoist an option most MD-200 or MPX purchasers select.

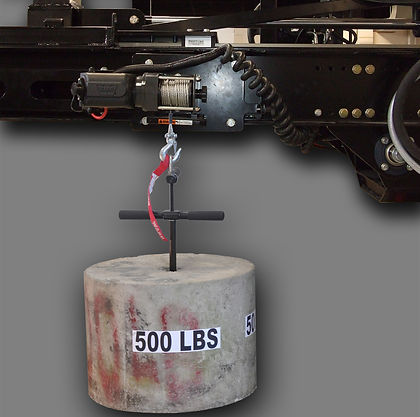

500-lb. Capacity Core Hoist for Series 500



To avoid workplace injury of crews working with heavy or larger cores many purchasers also choose this optional Core Hoist.



This powerful, boom-mounted, adjustable (12 V), core hoist is available as an option on the Series 500 coring unit to safely hoist and manipulate cores weighing up to 500-pounds.



A typical 18” diameter core, 8” deep, weighs about 170 lbs., and a core 12” deep, more than 250 pounds, making the core hoist an option most Series 500 purchasers select.

DC/AC 3000 Watt Inverter



3000 watt True Sine-Wave AC unit with high-surge capability that can provide the necessary current to start-up demanding electrical loads. The unit also includes an innovative USB connection for providing power to most USB chargeable devices and has a built in warning alarm (to restart the vehicle) and an automatic shut down if battery voltage reaches 11.0 Vdc or 10.5 Vdc, respectively.

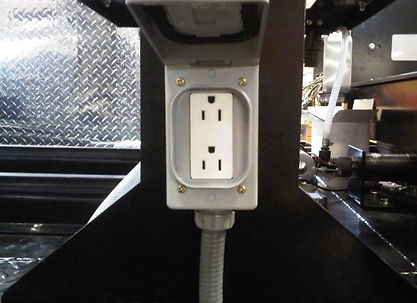

The compact size (3.9" x 11.8" x 13.7”) allows it to be conveniently installed in the cab behind the seat where it is protected from the weather. In addition to dual GFCI AC receptacles on the unit itself, heavy duty cabling carries the source of AC to an all weather receptacle at the rear deck area to provide power for all types of electrical loads including, variable speed power tools for mixing Utilibond and electrical appliances, such as the core heater for cold weather reinstatement work.

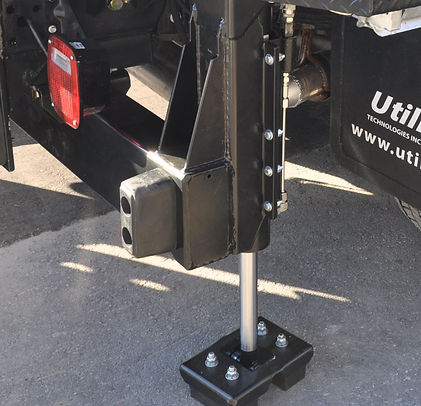

"Stabilizer Deployed” -- Warning System



To minimize the possibility that the operator will drive off with the stabilizer(s) in contact with the ground or not fully retracted, this system employs specially designed proximity sensors to detect the position of the stabilizers and to signal that condition to the driver in the cab by means of a bright warning light (10 diode LED light that has the power 25 times greater then the standard light ) prominently displayed on the instrument panel just inside the driver's door.



When the stabilizers are deployed or not fully retracted, the system automatically senses that condition and energizes the warning light in the cab, alerting the driver that the stabilizers are not retracted thereby reducing the potential for damage.



Excluding down-time, the cost to repair or replace a damaged stabilizer, including hydraulic cylinder, road pad and related bracketry could amount to as much as $1,000.

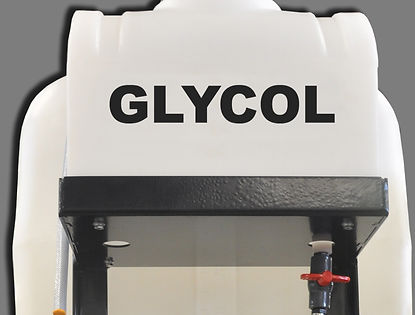

Cold Weather Winterizing System



During cold or freezing temperatures, to prevent frozen water lines and valves, Utilicor offers a self contained, easy access, glycol based Winterizing System consisting of an 8-gallon auxiliary glycol tank and connections to the unit’s pressurized water system that allows the operator, with one turn of a valve, to completely winterize all of the water lines and valves on the coring unit when the vehicle is in transit or shut down between jobs.

Deck Mounted Access Steps



Best Safety Practices and some Government Regulations recommend or require all commercial or industrial vehicles that require personnel to climb up on and down from the deck area to have access steps and handholds, that allow the user to have at least 3 limbs in contact with the vehicle while doing so. Utilicor offers a permanently affixed, steel ladder and handholds or supports, installed on the curbside of the vehicle forward on the deck, or at the rear corner of the deck, that generally comply with the essential elements of SAE J-185 “Access Systems for Construction and Industrial Equipment”.

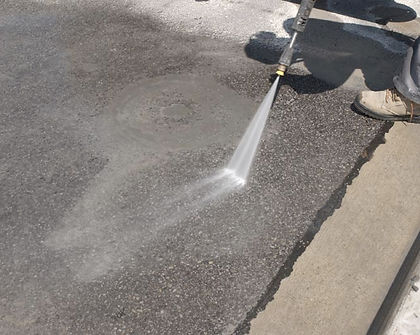

High Pressure Wash System



Hydraulically driven high-pressure water pump, 5.5 G.P.M. @ 1500 P.S.I. with15 ft of 3/8” hose and high-pressure handgun which allows for quick and easy clean up of coring site and coring equipment.

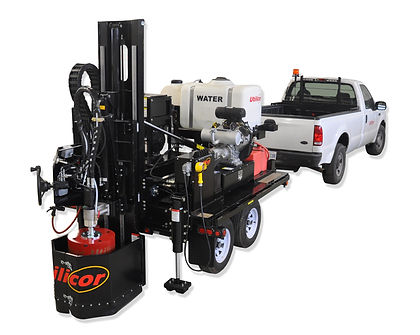

Trailer / Accomodates MPX Coring Unit



Utilicor Trailer Specifications

  • Tandem axle trailer with 5500 lbs. capacity

  • Axles: 2 x 3500 lbs.

  • Axle type: spring with double eye overslung

  • Electric brakes (both axles) ·

  • Breakaway switch with battery kit· Adjustable Pintle

  • NATM certified

  • Connector: 7 pin commercial ·

  • Paint: black epoxy

  • Safety chains: 5/16” gold chains and hooks

  • Wiring: sealed harness·

  • Weight: 1200 lbs.

  • Dimensions: 98”L x 72”W (trailer bed)· Overall length: 149”

Coring Truck Options

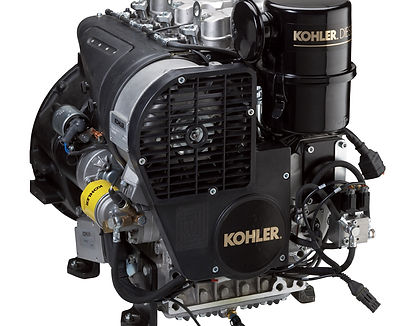

Kohler Diesel Engine - Upgrade for MPX



Kohler KD-6252 Air Cooled. The direct injection system produces increased power and lower fuel consumption. Full pressure lubrication offers superior cooling and performance combined with full-flow oil filters for longer engine and component life. Air cooling, horizontal shaft, single-cylinder design, and a cast iron liner set the standard for power and engineering excellence all backed with a 3-year full warranty.
